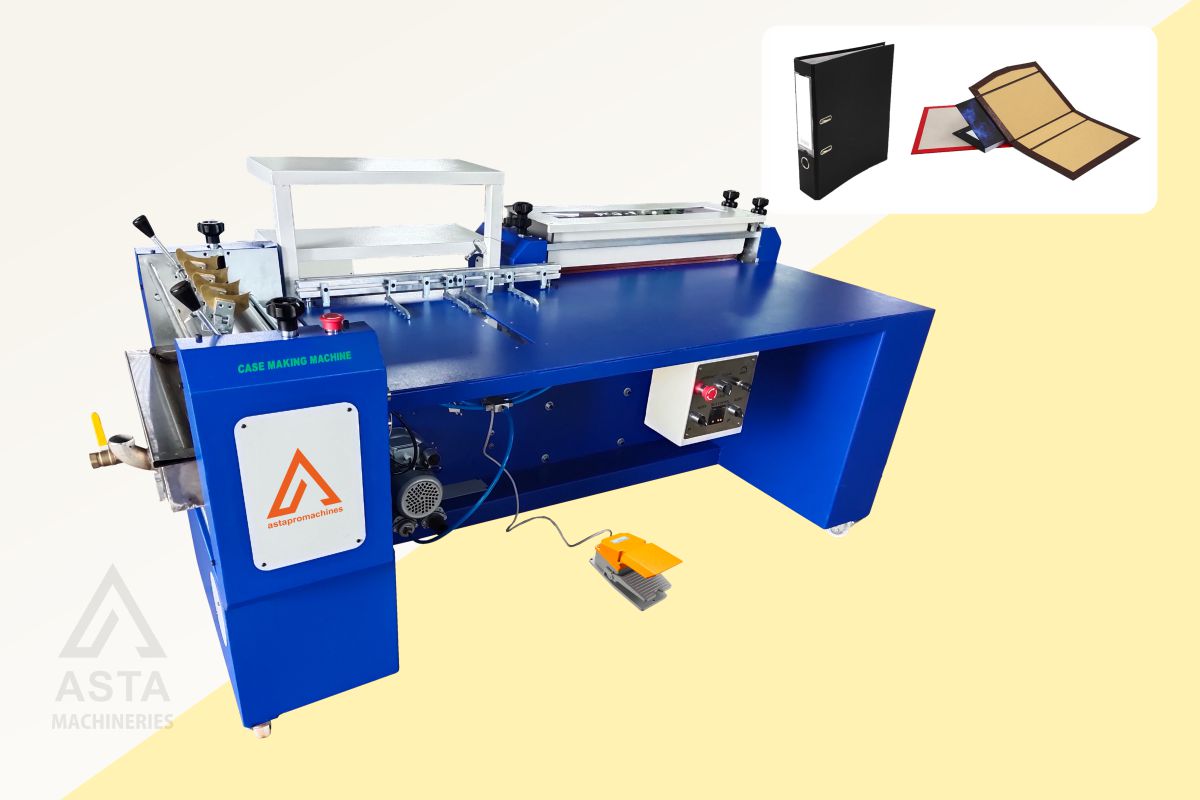

Semi-Automatic Case Making Machine
Semi-Automatic Case Making Machine
DESCRIPTION
- Unique design to produce hard cases.
- Operator based executions.
- Stations:
- 1. Gluing Station.
- 2. Registering Suction Table.
- 3. Folding Station.
- Foot pedal to control the registering station.
- Brush roller for folding process.
- Rubber coated rollers for pressing the cases.
- Adjustable Glue control.
- Single Pass can provide two folds.
TECHNICAL SPECIFICATION
| Min. Case Size | 100mm x 160mm |
| Max. Case Size | 450mm x 800mm |
| Paper Thickness | 60-170 GSM |
| Board Thickness | 1.5-5 mm |
| Turning-In Width | 15-30 mm |
| Type of Glue | Hot melt and Cold |
| Gluing System | Bottom |
| Register Table | Air Suction |
| Case Registering Bar | Pneumatic Actuated |
| Air Pressure required | 6-8 Bar |
| Capacity | 300-350 cases/hour |
| Motor Power | 4.5HP |
| Power Supply | 415 V, 50Hz, 3 Phase |
| Machine Dimensions | 2500 x 1000 x 1025 mm |
| Weight | 650 Kgs. (Approx.) |
Features:
- Even layering gluing system.
- Less glue consumption.
- Registering scales gives perfection in board position.
- Brush type folding gives fast in Folding.
- No need dry time.
